Algorithm Introduce 2 - Abstract Data types and Hash Tables

Abstract Data Type

What is the abstract data type? Specification of a data structure in terms of the operations it needs to support.

Just a concrete(具体化) approach for implementation of a data structure that fulfills these requiremnts.

Queues (FIFO behavior)

Sometimes, we need a structure which can do these two things.

  • Insert a new key k into the structure
  • Remove the least-recently-inserted key from the structure.

But, how can we use the bacis structure arrays, list, stacks to implement the queues. Firstly, we can’t use the stacks to implement it. So, we try to implement the queues by arrays and list.

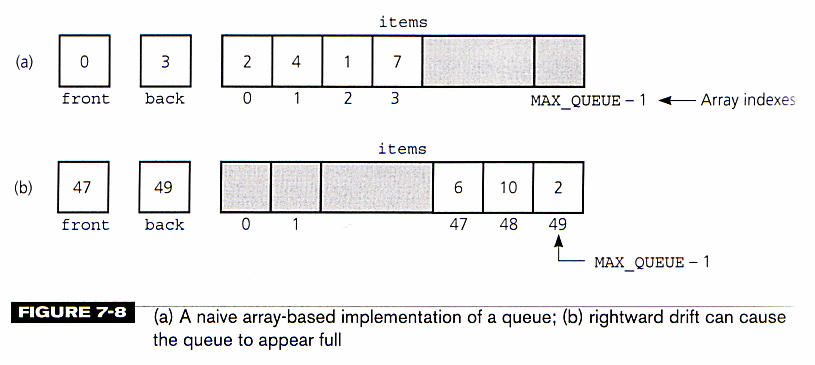

  1. Circular array
class Queue{
 public:
  Queue();
  ~Queue();
  void insert(int key);
  int remove(void);
 private:
  int *A;
  int front, back, N;
}

int Queue::remove(void) {
  int result = A[back];
  back = (back+1) % N;
  return result;
}

int Queue::insert(int x) {
  A[front] = x;
  front = (front+1) % N;
}

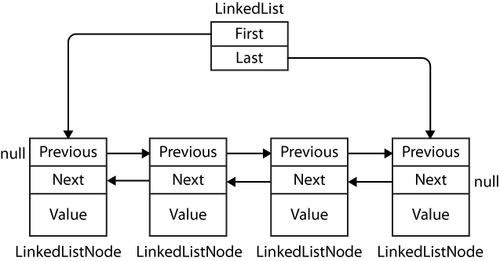

  1. Linked list
// A C program to demonstrate linked list based implementation of queue
#include <stdlib.h>
#include <stdio.h>
// A linked list (LL) node to store a queue entry
struct QNode {
  int key;
  struct QNode *next;
};

// The queue, front stores the front node of LL and rear stores ths
// last node of LL
struct Queue {
  struct QNode *front, *rear;
};

// A utility function to create a new linked list node.
struct QNode *newNode(int k) {
  struct QNode *temp = (struct QNode *)malloc(sizeof(struct QNode));
  temp->key = k;
  temp->next = NULL;
  return temp;
}

// A utility function to create an empty queue
struct Queue *createQueue() {
  struct Queue *q = (struct Queue *)malloc(sizeof(struct Queue));
  q->front = q->rear = NULL;
  return q;
}

// The function to add a key k to q
void enQueue(struct Queue *q, int k) {
  // Create a new LL node
  struct QNode *temp = newNode(k);

  // If queue is empty, then new node is front and rear both
  if (q->rear == NULL) {
    q->front = q->rear = temp;
    return;
  }

  // Add the new node at the end of queue and change rear
  q->rear->next = temp;
  q->rear = temp;
}

// Function to remove a key from given queue q
struct QNode *deQueue(struct Queue *q) {
  // If queue is empty, return NULL.
  if (q->front == NULL) return NULL;

  // Store previous front and move front one node ahead
  struct QNode *temp = q->front;
  q->front = q->front->next;

  // If front becomes NULL, then change rear also as NULL
  if (q->front == NULL) q->rear = NULL;
  return temp;
}
// Driver Program to test anove functions
int main() {
  struct Queue *q = createQueue();
  enQueue(q, 10);
  enQueue(q, 20);
  deQueue(q);
  deQueue(q);
  enQueue(q, 30);
  enQueue(q, 40);
  enQueue(q, 50);
  struct QNode *n = deQueue(q);
  if (n != NULL) printf("Dequeued item is %d", n->key);
  return 0;
}


Queues Example

Question: Given N numbers, do two of them sum to 42

We can find the number which is equal to 42-X for each number X. There are two steps for this question.

  • Sort the numbers. )
  • For each number X in the array, use Binary search to see if 42-X is also present in the array.

«————-TODO:–Not Finshed—————»
